MPPT Automatic General Solar Charge Controller GZL-M100A
PRODUCT DESCRIPTION
| Product Name： | MPPT Automatic General Solar Charge Controller |
| Product Model： | GZL-M100A |
| Rated Output Current： | 100A |
| Low-voltage Protection： | 10.7V*2/3/4 |
| High-voltage Protection： | 15.5V*2/3/4 |
| USB Output ： | 5V 1A*2 |
| DC Output： | 2A*1 |
| Cooling Methods： | Heat Sink |
| Controller Size： | 195*183*68 mm |
| Packing Size： | 205*205*70 mm |
| Controller Weight： | 0.8 Kg |
| Note： | Accept Customized Service |

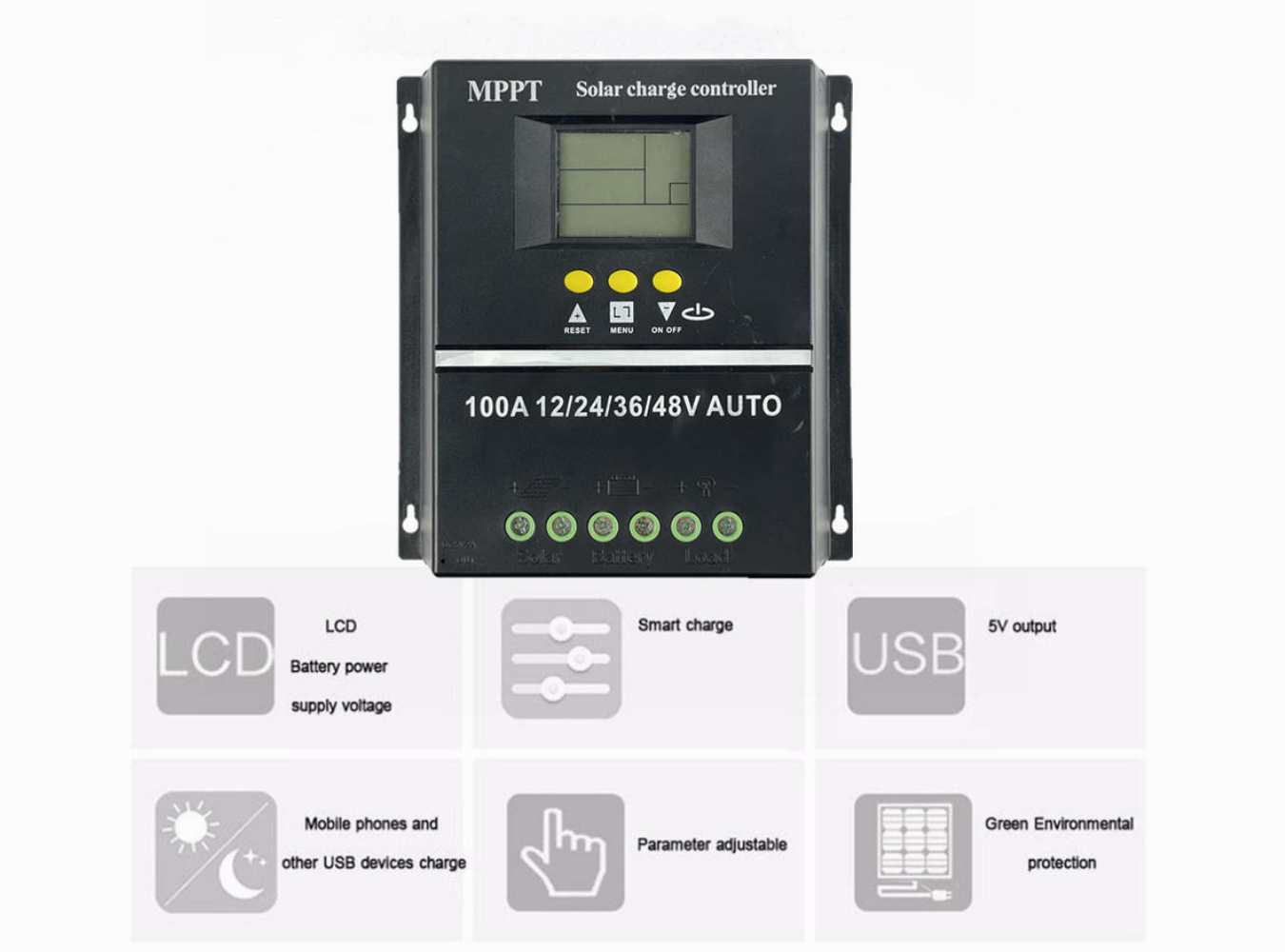

FUNCTIONAL FEATURES
MPPT Automatic General Solar Charge Controller. The new upgraded controller, intelligent and unattended, fast charging the high power charger. 1. LCD Displays 2. Smart Charge 3. Dual USB 4. Intelligent Light Control 5. Adjustable Parameters 6. Green Environmental Protection
LCD Display Description
① Battery Charge Status and Voltage Indication ② Solar Panel Charging Indication ③ Load Power Indication ④ Control Mode Indication ⑤ Fault Status Indication

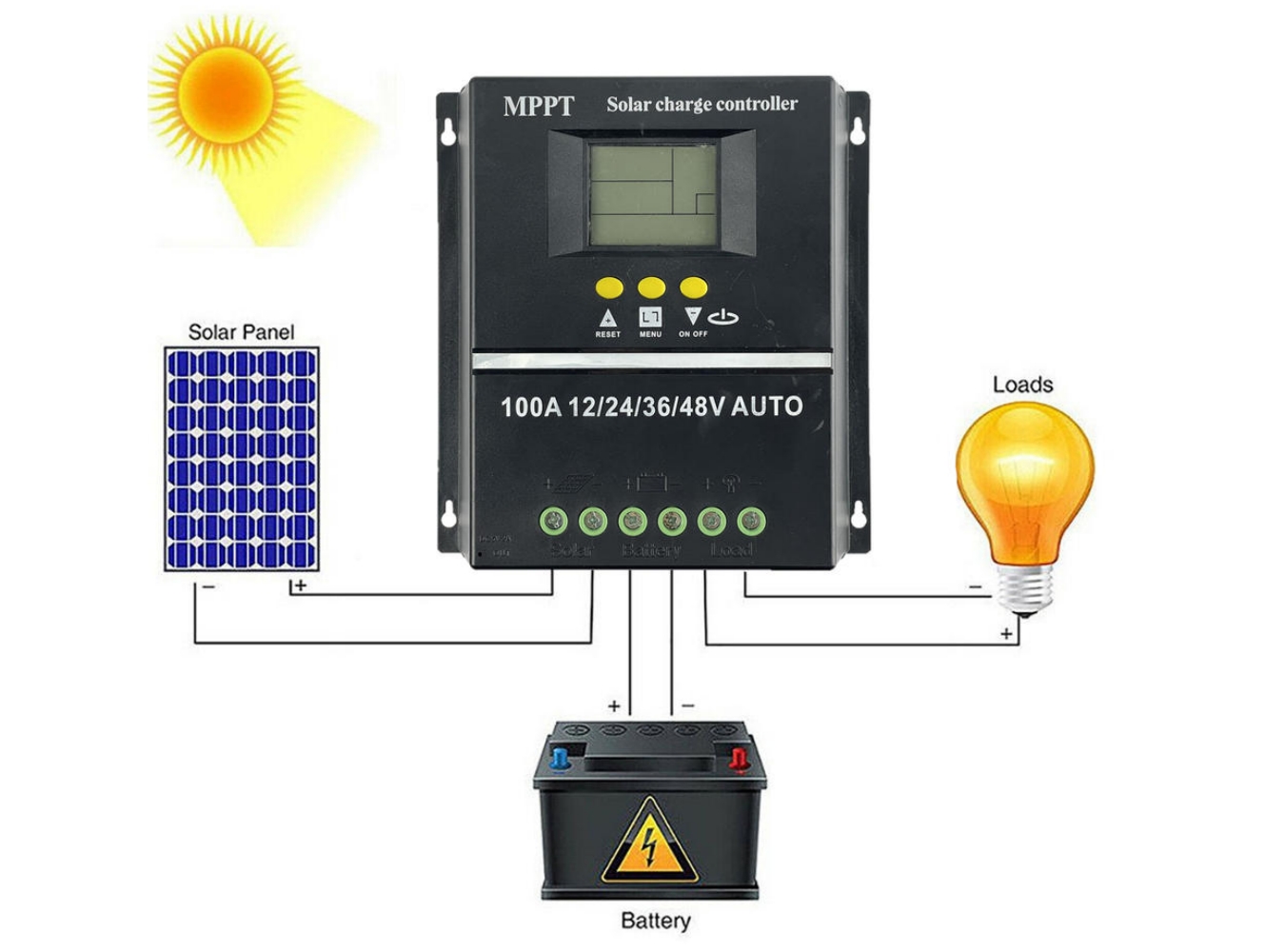

Solar System Wiring Method
1.Connect the battery positive and negative terminals to the controller as shown, and the controller will detect the battery voltage automatically. 2.Connect the load positive and negative terminals to the controller as shown. 3.Connect the solar panel positive and negative terminals to the controller as shown.
